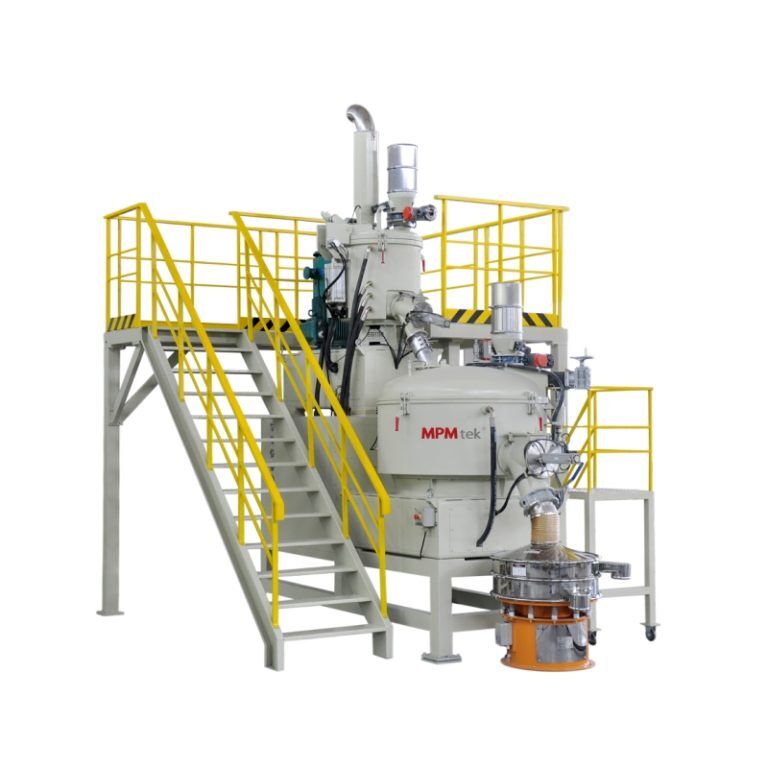

The Metallic Bonding Mixer is functioning for bonding the metallic paint to the surface of particle of powder coatings with metallic gloss. Research and develop the metallic bonding equipment for powder coatings of series MB successfully with INTEL.LECTUAL PROPERTY RIGHT by MPMtek is based on the following research-works: The requirement of customers. The differences in glass-transition temperature of powder coatings. Research and Test on mechanic dynamics during the process of friction-warming the powder coaling to the bonding temperature. Research on the FEASIBILITY of All-Integrated-Intelligent Automatic Control System.
| Model | MB350/KM1050 | MB200/KM700 |
| Bonding container MB capacity(L) | 350 | 200 |
| Cooling container KM capacity(L) | 1050 | 700 |
| Single output(kg) | 110 | 70 |
| Recycling water volume(m³/h) | 18 | 10 |
| Nitrogen consumption(L/min) | 300 | 200 |
| Compressed air(L/min) | 100 | 80 |
| Power(KW) | 90/15 | 45/11 |
| Dimension(mm) | 6800*4500*5600 | 5700*4000*5000 |
Product characteristics:
·Use for reference of Germany bonging technology, the bonding equipment we produce is easy to operate.
·Advanced design of cooling system to the mixing blades, bonding container and cooling container to avoid the solidify of particles during warming process.
·Automatic control for bonding process, including oxygen monitor, warming, bonding, cooling and discharging.
·304 stainless steel are used for the container inner wall, blade and discharge outlet, and the surface is mirror polished. No material sticks on the surface during production.
·Multilevel construction design for bonding container blade with good cleaning. The angle and height of baffled can be adjusted to make sure the material temperature difference is small during warming.
·High efficiency.
·The whole processing is controlled by intelligent estimate and control system. Material temperature can be controlled precisely. The temperature during bonding process can be controlled ±0.5℃.
·HMI friendly for operating, running parameters setting, display, transmission by internet and central managing.
At here, it’s all about giving the clients thebest quality products.
It is committed to the research and development of precise, intelligent, efficient, and human-friendly powder coating production equipment.
