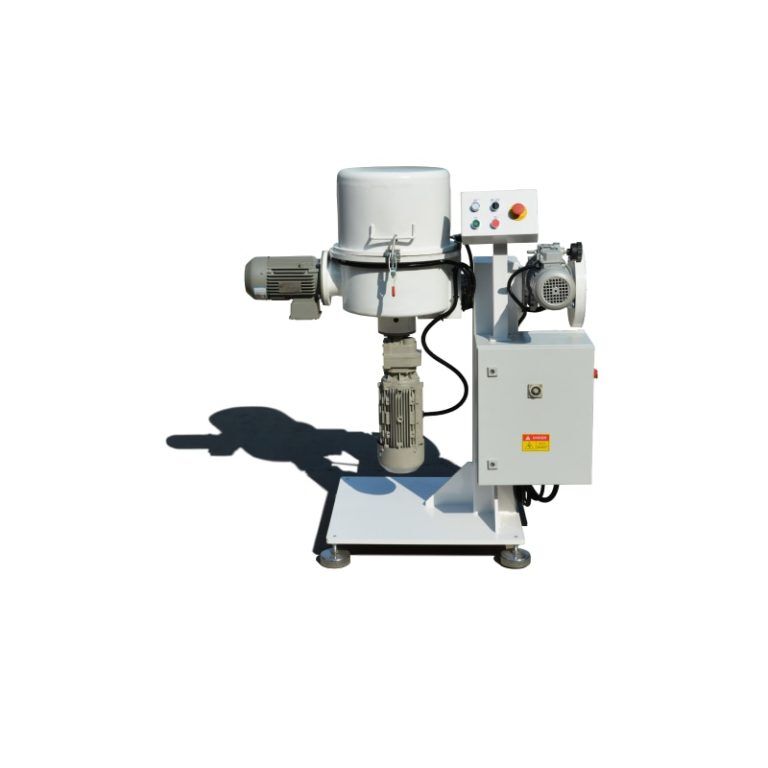

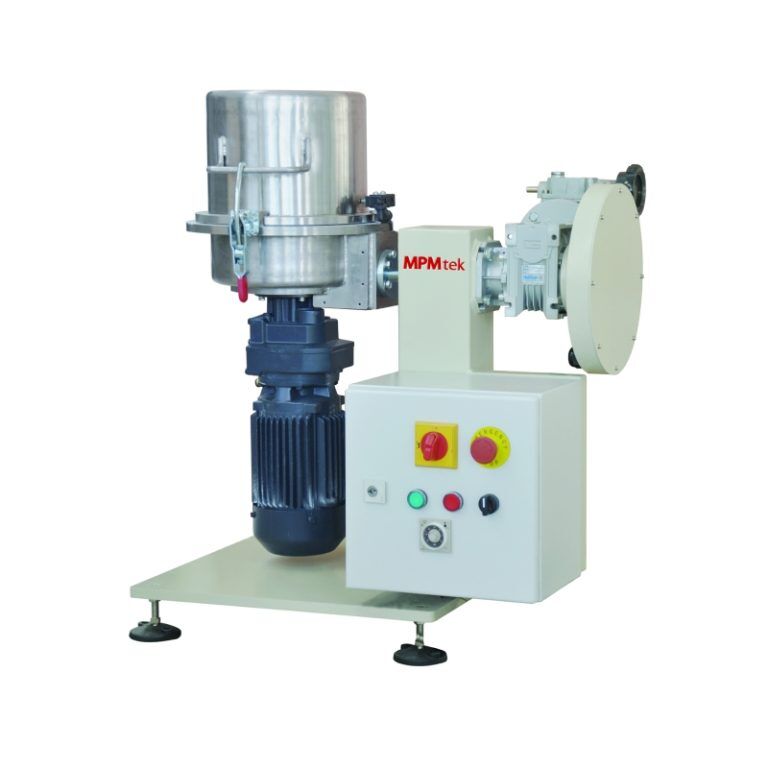

Container Mixer is an offline mixing machine with movable containers, using for mixing raw materials. The container loaded with raw materials is pushed to the original-work station, to be lifted, connected and locked to the mixing-head automatically. The raw material is to be mixed homogeneous by stir and high-speed crusher while the mixing-head tilts 180 degree to the working position. The container will be back to original position and separate from mixing-head when the mixing process finished, The container mixer is automatically controlled by PLC & HMl. The container mixer of series CMR is flexible equipment for production with high utilization, Mixing efficiently and homogeneously, easy to clean.
| Model | Container Capacity(L) | Work Capacity(L） | Stirrer Powder(KW) | Chopper Power(KW) | Tilt Power(KW) | Dimension L* W*H(mm) |
| CMR-10 | 10 | 8 | 0.75 | 0.18 | 720x700x1230 | |
| CMR-30 | 30 | 24 | 1.5 | 1.1 | 0.37 | 1200x820x1570 |
| CMR-50 | 50 | 40 | 4 | 1.1 | 0.55 | 1300x880x1850 |
Product characteristics:
·Flexible off-line equipment for production with high utilization.
·Mixing efficiently and homogeneously
·Multi-containers used to operation, easy to clean and change color
·Double-seals for shaft, no powder leakage, no solidified particle
·Comprehensive safety protection system
·Easy to maintenance
·High reliability
At here, it’s all about giving the clients thebest quality products.
It is committed to the research and development of precise, intelligent, efficient, and human-friendly powder coating production equipment.
