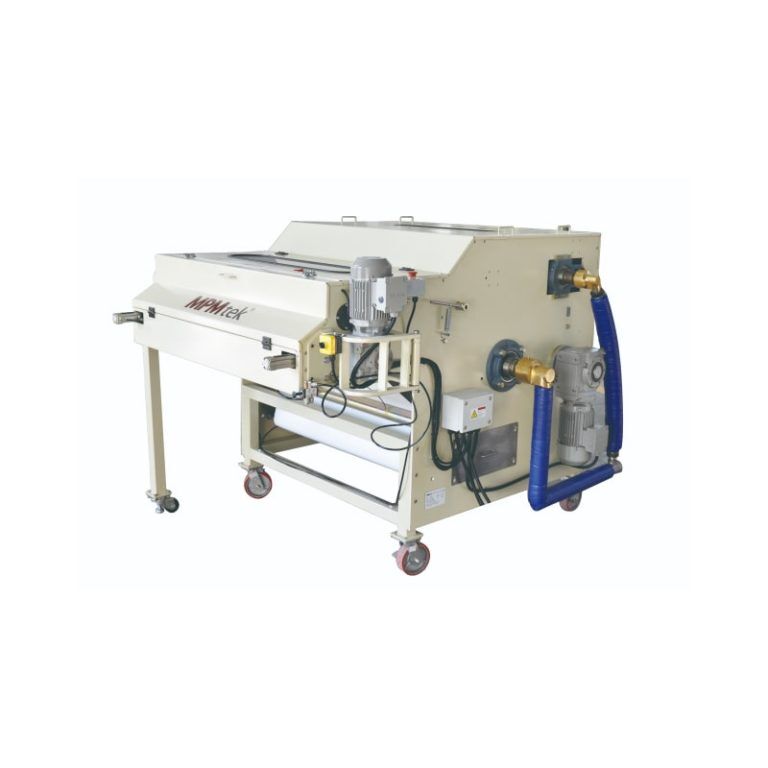

Compact Cooling Crusher is composed of cooling roller, cooling drum, artificial rubber conveyor and crusher. Thermos-melting material from extruder is rolled to be sheet for 1-2mm by cooling roller and cooling drum, being cooled down by cooling drum to ambient temperature during conveying, then being crushed into chips and discharged.
| Model | Output(kg/h) | Drum Diam.(mm) | Drum Length(mm) | Main Power(kw) | Crusher Power（kw) | Dimension L*W*H(mm) |
| CCD-30A | 30 | 128 | 300 | 0.25 | 400x757x450 | |
| CCD-30B | 30 | 270 | 340 | 0.25 | 0.12 | 1145x890x755 |
| CCD100 | 100 | 320 | 430 | 0.37 | 0.18 | 1000x1000x980 |
| CCD200 | 200 | 445 | 600 | 0.55 | 0.25 | 1600x1300x1270 |
| CCD500 | 500 | 600 | 920 | 1.1 | 0.55 | 1850x1590x1510 |
| CCD700 | 700 | 800 | 1100 | 1.5 | 0.75 | 2080x1875x1550 |
| CCD1000 | 1000 | 1100 | 1300 | 2.2 | 1.1 | 2450x2500x2000 |
Product characteristics:
·Compact construction can save 65% working area than other series cooling crusher
·Conveyor is made of anti-static, heatproof and flame-resistant artificial rubber
·Cooling drum is designed to big size for high cooling efficiency and low operation cost
·Chip thickness is adjustable and size is uniform
·No contamination on chips
·Comprehensive safety protection system
·Easy clean and maintenance
·High reliability
·High performance price ratio
