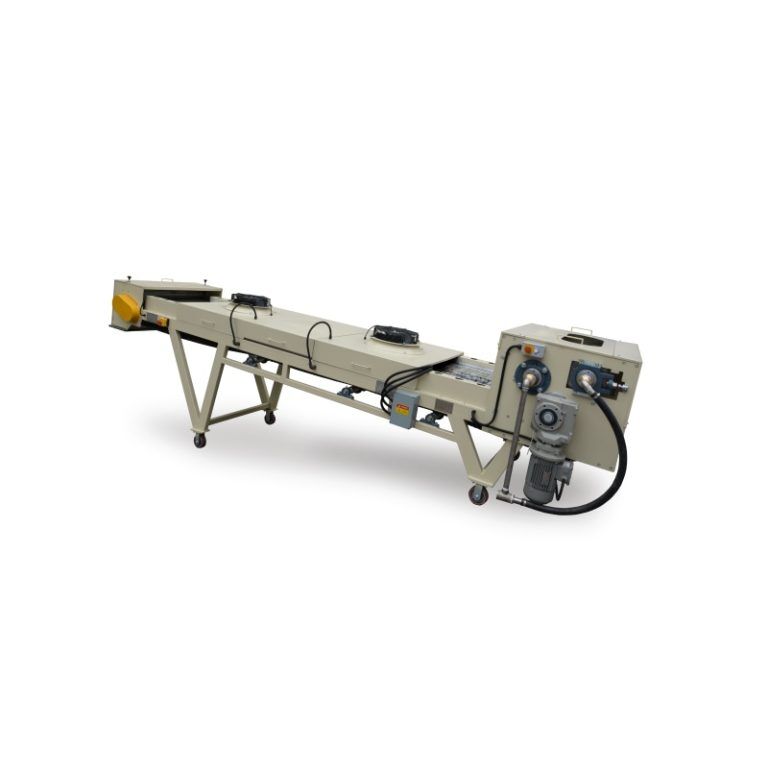

Air Cooling belt(Slat) is composed of cooling rollers, stainless steel slat chain conveyor,crusher and cooling-air system, Thermos-melting material from extruder is rolled to be sheet for 1-2mm by cooling rollers and being cooled down on the stainless steel slat chain conveyor to ambient temperature by cooling air, then being crushed into chips and discharged.
| Model | Output(kg/h) | Diameter of roller (mm) | Belt Length(mm) | Belt width (mm) | Main Power(kw) | Dimension L*W*H(mm) |
| CCS-100 | 100 | 240 | 2000 | 400 | 0.55 | 4000x1500x1300 |
| CCS-200 | 200 | 270 | 4000 | 600 | 0.75 | 4600x1600x1400 |
| CCS-400 | 400 | 370 | 5000 | 900 | 1.1 | 5600x1700x1500 |
| CCS-600 | 600 | 420 | 6000 | 1000 | 1.5 | 6600x1800x1500 |
| CCS-800 | 800 | 470 | 6000 | 1200 | 2.2 | 6600x2000x1600 |
| CCS-1000 | 1000 | 550 | 7000 | 1200 | 3 | 7800x2000x1600 |
Product characteristics:
·Air-cooling
·Conveyor is made of stainless steel slat chain.
·Chip thickness is adjustable and size is uniform
·Comprehensive safety protection system
·Easy clean and maintenance
·High reliability
·Low power consumption
